| 起源の場所: | 中国 |
|---|---|
| ブランド名: | BOTO |
| 証明: | MIL STD GB JIS JEDEC IEC ISO |
| モデル番号: | B-ZW |
| 最小注文数量: | 1pcs |
| 価格: | Discussible |
| パッケージの詳細: | 木製のケース |
| 受渡し時間: | 15日 |
| 支払条件: | L/C、T/T、Western Union |
| 供給の能力: | 1000pc/月 |
| モデル: | B-ZW | 安全保護: | 漏出、短絡、温度上の、現在の保護/コントローラーの電源異常の記憶上の水不足、 |
|---|---|---|---|
| ランプのワット数: | 40W | 紫外波長: | UV-C 290nm-400nm UV-Aの、UV-Bの、 |
| 材料: | 304ステンレス鋼の版 | 内部: | 45x117x50 |
| 外的薄暗くしなさい: | 58x128x135 | 湿度の範囲: | ≥95%R.H |
| 管間の間隔: | 35mm | サンプルと管間の間隔: | 50mm |

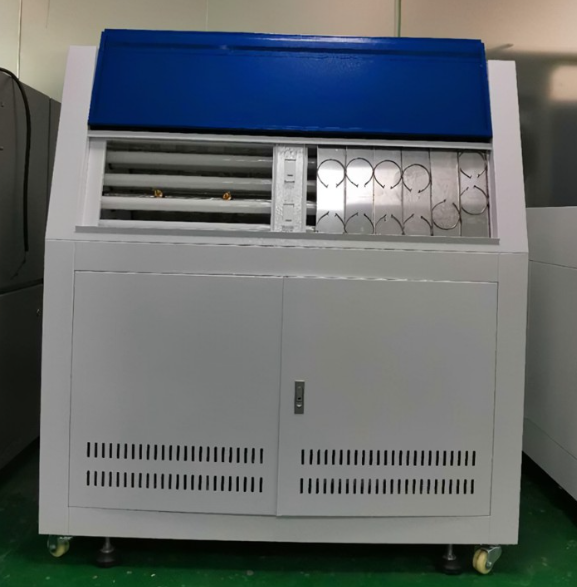

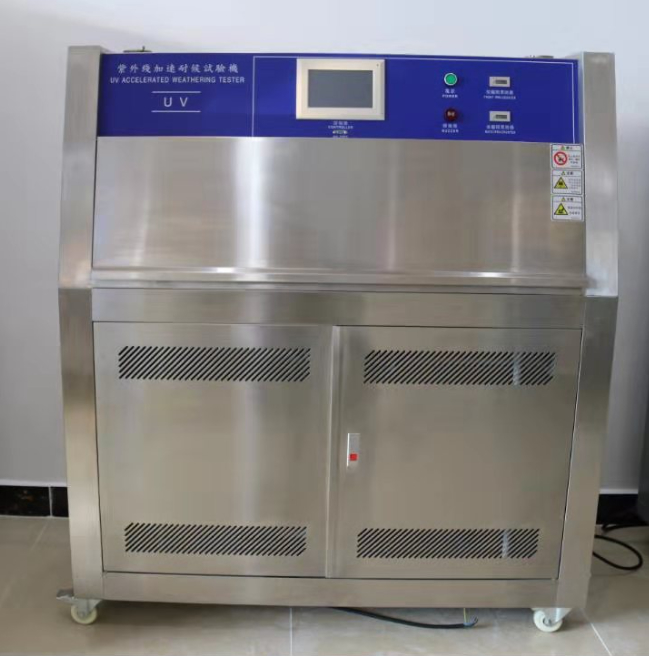

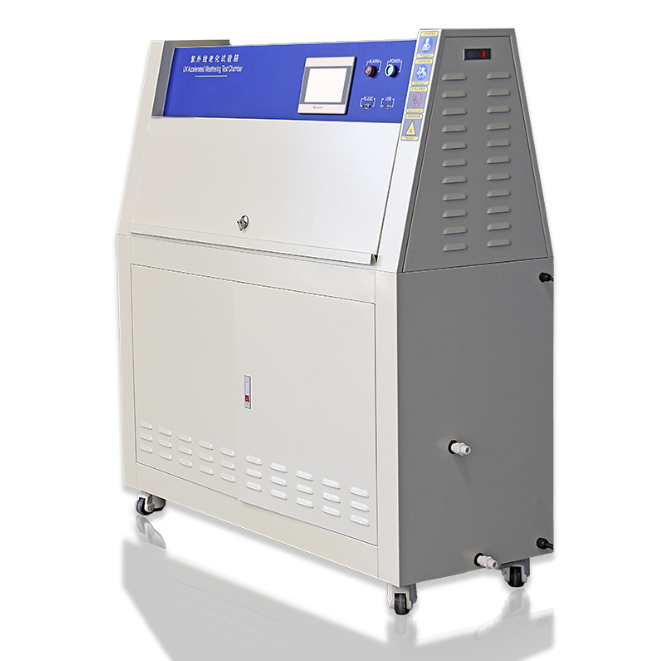

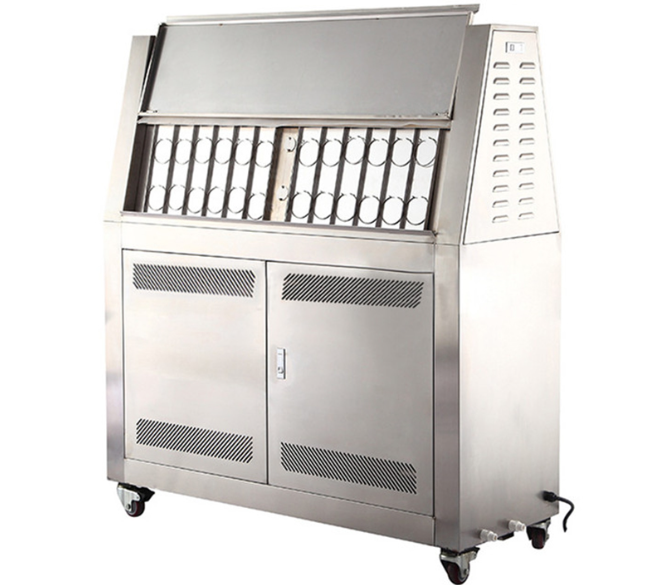

UV-A Mathine Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber
Description:
UV Aging Test Chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
user-friendly design:
Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.
Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.
Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.
Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
Touch screen controller (SIEMENS)
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel
The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
Model |
B-ZW | ||||
| Internal Dim(DxWxH) | 50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Our company:
Packing/Shipping:
FAQ
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept FCA, CIF, CFR, and so on
